SPECIFICATIONS

Brand Name: AIMOS

Certification: CE,FCC,RoHS

Choice: yes

Hign-concerned Chemical: None

Model Number: 2 in 3 out riple Monitor KVM Switch

Origin: Mainland China

Package: Yes

Type: Cable Adapter

semi_Choice: yes

There are 3 models optional, different model has different interface and appearance, please choose suitable model before purchase:

NO 1:

Input: 2 * (HDMI 2.1+2 * DP1.4)

Output: HDMI2.1 + 2*DP1.4 + 4*USB3.0

NO 2:

Input: 2 * (HDMI 2.1+2 * DP1.4)

Output: 2*HDMI2.1 + DP1.4 + 4*USB3.0

N0 3:

Input: 2 * (2 *HDMI 2.1+ DP1.4)

Output: 2*HDMI2.1 + DP1.4 + 4*USB3.0

—————-NO 1—————————NO 2———————————NO 3——————-

About this item

• 【Triple Monitor KVM Switch】 Displayport1.4+HDMI2.1 USB3.0 KVM Switch allows 2 desktop computers to share 3 monitors and 4 USB3.0 ports(keyboard,mouse and other USB devices).It can make your work space tidy and efficient, also a premium choice for working from home.▲▲▲NOTE:The DP and HDMI ports on the input need to be connected to the independent graphics card, otherwise they will not work.

• 【UHD8K@60Hz/4K@144Hz】The resolution and fresh rate of triple monitor KVM switch supports up to 8K@60Hz/4K@144Hz, Please note :①HDMI part supports 8K@60Hz,4K@120Hz,and backward compatible.②Displayport part support 8K@30Hz ,4K@144Hz and backward compatible.✔✔✔Warming: Please use HDMI2.1 and DP1.4 cables, if the set distance allows,the length of cabels more short more better.

• The function of the dip switch (DB enhancement selection switch) on the back of the product: When the DP monitor does not work, please turn this dip switch down. The switch will help adjust the strength of the DP signal so that the monitor can work normally.

• 【3 Monitors KVM Switches with 4 USB 3.0 Ports】Triple monitor HDMI+2 Displayport KVM switch with 4 USB 3.0 ports which can recognize keyboard,mouse,printer,scaner and other USB devices. USB 3.0 offers data transfer speeds of up to 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps.

• 【Extended Mode&Copy Mode】Triple display KVM switches require 2 DP+HDMI connections per computer, and for computers with discrete and integrated graphics cards require both 2 DP+HDMI ports must belong discrete graphics card. However, most computers, especially laptops, do not have dual DP+HDMI ports and therefore require a reliable adapter or docking station.

• 【 2 Switching Methdos】KCEVE triple monitors KVM switch driver-free and plug and play. you can press the button on the panel or use the wired remote controller（included in the package） to switch the computers.Two color lights indicate the active computer.

• 【Package List】

  1*Triple Monitor USB3.0 KVM Switch

  2*USB3.0 Cables(1.5m/4.9ft)

  1*Wired remote controller(1.52m/5ft)

  1*User manual

  1*12V Power Adapter(1.52m/5ft).

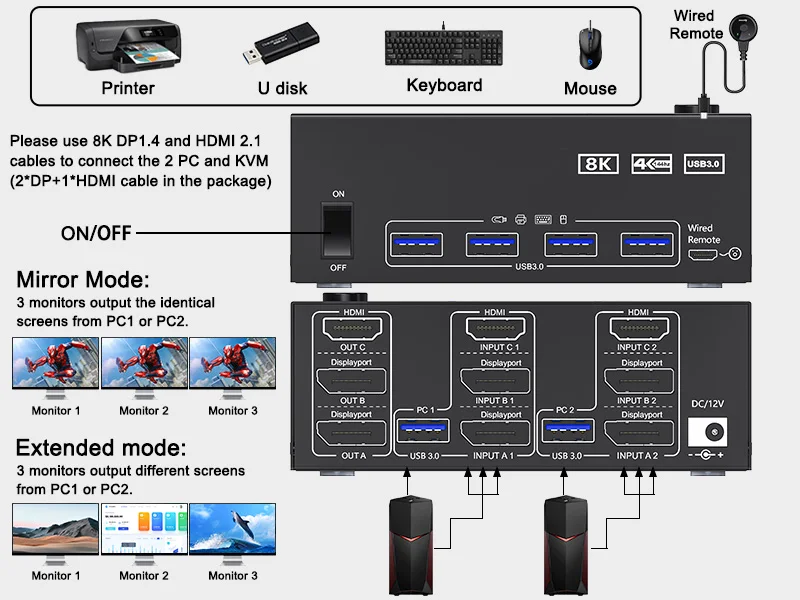

  For input, each computers needs 2 DP + 1 HDMI connection, for output needs 2 DP monitors + 1 HDMI monitor

  Each computer needs 1 HDMI cable + 2 DP cables + 1 USB cable to connect the KVM switch.

  • Step 1: Connect 1 HDMI cable + 2 DP cables + 1 USB cable to PC 1 and KVM switch (INPUT A1, INPUT B1, INPUT C1, USB 3.0).

  • Step 2. Connect 1 HDMI cable + 2 DP cables + 1 USB cable to PC 2 and KVM switch (INPUT A2, INPUT B2, INPUT C2, USB 3.0).

  • Step 3. Connect 1 HDMI cable and 2 DP cables to the KVM switch (OUT A, OUT B, OUT C) and three monitors.

  • Step 4: Connect your USB device (keyboard and mouse) to the USB 3.0 port on the KVM switch. You can connect up to 4 USB 3.0 devices at the same time. Compatible with USB 2.0/1.1 devices.

  • Step 5. Connect the wired remote control

  Note: Please connect the 12V DC power adapter to provide sufficient power. Using a shorter 8K HDMI + DP cable can make the KVM switch more stable.

  8K@60Hz/4K@144Hz Triple Monitor KVM Displayport1.4 + HDMI2.1Displayport1.4+HDMI2.1 USB3.0 KVM Switch allows 2 desktop computers to share 3 monitors and 4 USB3.0 ports(keyboard,mouse and other USB devices).It can make your work space tidy and efficient, also a premium choice for working from home.Two switching Methods and Indicator Lights

  Two switching methods: control panel button + 4.92ft wired controller (included)

  Two color indicator lights: Let you clearly know which computer you are currently switching toUHD8K@60Hz/4K@144Hz

  The resolution and fresh rate of triple monitor KVM switch supports up to 8K@60Hz/4K@144Hz.

  BUT PLEASE NOTE THAT :HDMI part supports 8K@60Hz，4K@60Hz,and backward compatible.Displayport part support 8K@30Hz ,4K@144Hz and backward compatible.

  Warming: Please use HDMI2.1 and DP1.4 cables, if the set distance allows,the length of cabels more short more better.

  2 Mode for Triple KVM Switch(DP1.4+HDMI2.1)



  • Copy Display Mode

  Press "Window+P" simultaneously on the keyboard to select mode.

  In copy mode, the images on the three monitors are the same

  Extend Display Mode

  Press "Window+P" simultaneously on the keyboard to select mode.

  In extended mode, the three monitors display different images, and the working window can be dragged between the three monitors.

  More Upgrade Details of the 2 Computer Triple Monitor KVM



  Power Switch

  The signal can be re-identified after powering off for 5 seconds and then turned on again. No need to unplug or plug in.

  Indicator Light

  A 12V power adapter is included in the package, which solves the problem of insufficient power supply.

  12V Power Port

  Indicator lights can clearly show which computer you are currently switching to
