Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger with PFC CAN BUS
42 in stock
Sh 1,319,926
SPECIFICATIONS
Battery Number: 1
Brand Name: IDOITWELL
Certification: CE,RoHS
Data Transmission: other
Display screen: Yes
Hign-concerned Chemical: None
Intelligent Charge: Yes
Model Number: AD3000S
Origin: Mainland China
Package: Yes
Quick charge: Yes
Type: Electric
Use: Standard Battery
(battery charger)Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger with PFC CAN BUS
INPUT:230Vac
Important Note:
We need the exact charger specifications to start production, so please leave a message when confirming the ordering and provide us with all the necessary information below. Thank you!
Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
Custom battery charger requires the following information:
1. Battery type: lead-acid battery, lithium battery or lifepo4 battery?
2. Battery capacity:
3. Input AC voltage:
4. Input plug:
5. Output voltage:
6. Output current:
7. Output plug:
For example: 48V 13S 60Ah lithium battery, input 110Vac USA 3-pin plug, output 54.6V 15A Anderdon 50A red plug
(Please specify whether the Anderson 50A plug is gray or red.)
We are the professional manufacturer that produce all kinds of the battery chargers, such as VRLA, AGM, GEL, SLA lead acid battery chargers, lithium battery chargers, lifepo4 battery chargers, lipo battery chargers, etc. We can 100% custom the battery chargers according to buyer's demands.NO MOQ!!!Even if only 1 piece.
Before purchasing our battery chargers, please read the following questions and answers carefully:
Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
A: How to choose the suitable charging voltage for the battery?
Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
B:How to choose the suitable charging current for the battery?
|
Battery Type |
Battery Capacity (For example) |
Suitable charging current rate |
Suitable charging current |
|
Lead acid battery |
120ah |
1/10 |
12A |
|
Lithium battery |
120ah |
1/3 |
40A |
|
Lifepo4 battery |
120ah |
1/4 |
30A |
Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
C:How to choose the suitable charger for the battery?
|
IDOITWELLSmart Automatic battery charger list |
|||||||||
|
ModelIDOITWELL |
Charging voltage¤t for reference |
N.W. (KG) |
Size(mm) IDOITWELL |
||||||
|
12V |
24V |
36V |
48V |
60V |
72V |
84V |
|||
|
120W |
7A |
4A |
2.5A |
1.8A |
1.5A |
_ |
_ |
0.7 |
135x90x50 |
|
180W |
10A |
5A |
3.5A |
2.5A |
2A |
1.5A |
_ |
0.9 |
155x90x50 |
|
240W |
15A |
7.5A |
5A |
3.8A |
3A |
2.5A |
_ |
1 |
170x90x50 |
|
360W |
20A |
12A |
8A |
6A |
4.5A |
4A |
_ |
1.2 |
170x90x63 |
|
600W |
25A |
19A |
12A |
9A |
7A |
6A |
_ |
2.5 |
207x120x70 |
|
900W |
40A |
25A |
18A |
15A |
12A |
10A |
_ |
3 |
220x135x70 |
|
900WB |
40A |
25A |
18A |
15A |
12A |
10A |
8A |
3.5 |
260x175x90 |
|
1200W |
50A |
30A |
20A |
19A |
15A |
12A |
10A |
4.5 |
260x175x90 |
|
1500W |
60A |
45A |
30A |
24A |
19A |
16A |
14A |
5.5 |
300x175x90 |
|
2000W |
90A |
60A |
40A |
30A |
25A |
20A |
18A |
6.5 |
330x175x115 |
|
2500W |
– |
75A |
50A |
40A |
30A |
25A |
22A |
7 |
380x240x150 |
|
4000W |
150A |
100A |
80A |
60A |
45A |
40A |
35A |
11 |
340x235x110 |
Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
D: Can your battery chargers charge various batteries, such as lead-acid batteries, lithium batteries and lifepo4 batteries?
They can't. Our battery chargers can only charge one kind of battery, because the charging voltage and charging curve of different batteries are different. For example, if you choose a lead-acid battery charger, it will only charge lead-acid batteries, not lithium batteries or lifepo4 batteries.
E: Do your battery chargers support adjustable charging voltage? For example 12V, 24V, 36V or…?
They can't. Our battery chargers can only use one output voltage, if you choose a 12v battery charger, you can only charge a 12v battery.
Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
F: Do you have the battery chargers support adjustable charging current?
Yes, we have. Our battery charger D series can make with 2 sets or 3 sets output current be adjustable. If you need to get more information please go to our store column “Adjustable current battery charger”.
G: What is the difference between a standard charger and an MCU-controlled battery charger (Z series)?
The MCU controlled battery charger is a 4-stage charging mode with an added pre-charge function. It supports to automatically cut off the charger after the battery is fully charged, the display shows the charging power, charging current and voltage level, and has overheat protection. The standard charger have not these functions.
Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
H: How long can I receive the charger?
Generally, the manufacturing time of battery chargers takes 8-12 days, because all battery chargers are customized according to customer requirements. If you accept the delivery time, please proceed with the purchase. After you place an order, we will treat buyer accept this delivery date.
We usually deliver the battery chargers through DHL, UPS, Fedex or other courier companies, and the transportation process usually takes 5-10 days.
Therefore, you will receive the package within 13 to 22 days after the order is paid.
About import tariff:
1. The price only includes the transportation cost to the shipping address, not including import tariff.
2. In most cases, the buyer does't need to pay any import tariff. But sometimes in some countries, customs officials may be very strict and require buyers to pay corresponding import tariff. If you have to pay import tariff, this is your responsibility to your country. The buyer should understand the local customs import policy before purchasing. Please try to avoid returning the package to China due to tariff issues, which will cause high shipping costs, these will be borne by the buyer.
3. Some buyers require low declarations of the product value in order to avoid paying high import taxes, such as declare 60% of the product value. We can declare the product value according to buyer's requirements, but we will not bear the consequences of false declarations due to low-value declarations.
If the buyer needs a low declaration, please inform us of the declare amount after placing the order. If you do not inform in advance, we may actually declare the product value. Thanks for your understanding ans support!
About canceling orders:Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
The order cannot be cancelled after 24 hours after payment, because the charger is completely customized according to the buyer's requirements, it is difficult for us to change the charger specifications for resale. Therefore, please carefully consider and confirm the relevant parameters of the charger within 24 hours after placing the order.
Please read the above information carefully and purchase with caution. Thank you for your understanding and support!
Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
The Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
Features:
High-efficiency smart charging system is designed for battery charging of electric vehicles. It is suitable for the charging of electric forklifts, electric pallet trucks, electric vans, electric stackers, electric tractors, AGV, electric sightseeing cars, golf carts, patrol cars, engineering cars, sanitation vehicle. The high-efficiency smart charging system adopts the structure of an integrated charger. The overall is composed of one power rectifying unit, one charging monitoring unit, and one charging socket, the charging process is fully automated to perform the charging management of the battery.

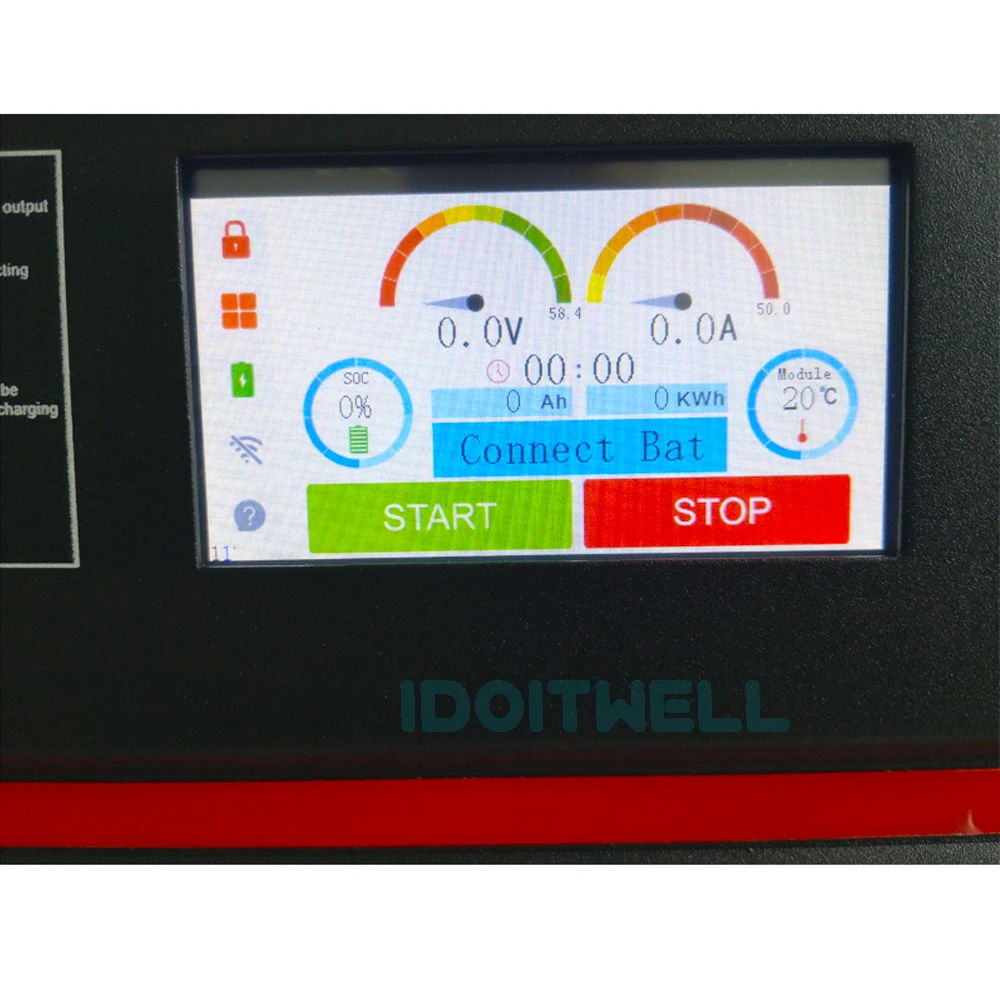

Smart and reliable
LCD/LED display
History alarm records-1000
Charging history-300
Emergency stop button
Smart compensation charging algorithm
Ltest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
Safe and stable
Wide input voltage range 220~264V
Output voltage ripple ±1%
Current ripple ±3%
Output current accuracy ±2%
Cutomized management
Humanize
Liquid battery IUIa charging management
Dedicated charge management
for valve-regulated batteries
Lithium battery CAN communication
Advanced heat dissipation technology
Maintain optimal battery performance and
battery health.
Ltest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
Energy efficient
PFC more than 0.99 ;
24V charger efficiency exceeds 92%;
48V charger efficiency over 95%;
THD ≤ 10%;
Power conversion efficiency is high and save cost;
Zero Voltage Switching ZVS+MOSFET Technology
DC 300A, Different voltage 24/36/48/72/80/96V,
Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
Product picture
Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
1 x Battery charger
1 x User Manual
Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
1.We promise all the photos display on our store are taken by our team, it is real and 2-10% brightness adjustment.
2.Before sending, all the battery charger will be tested, when packing item, we will use the Foam sponge or Corrugated box to protect the battery charger, we will make sure you will receive the perfect product.
Feedback:Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
1. If you are satisfied with our battery charger, Please take a minute to leave us your positive feedback. We depend on customers' satisfaction to succeed. Therefore your positive feedback of 5 STARS is extremely important for us.
2. If you are not satisfied with our battery charger, Please Do not leave any negative feedback before contacting with us. We will do all we can and work with you to solve any problems.
Return and Refund policy:Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
1. We support no reason return and change item policy, but buyer need to pay full cost for two way transports (include the shipping, taxes and customs cost etc.) and keep the item in good condition, otherwise we will keep right to refuse the refund and return. All the return policy must be apply within 3 days (the time point start from buyer receive the item).
2. If the buyer receive wrong and problem items, please contact us within 3 days, and provide the confirmation proof through Video or Photos. When the item is judged as our responsibility, we provide the refund and return policy. If the item can be accepted and repaired in domestic we will take a part of refund. If can not be repaired or broken totally, we will refund the full money or change a new one to buyer when we receive the wrong or problems items.
3. When the refund policy can not solve problems, we accept the return policy, but for return policy buyer need to afford one way cost (the shipping, taxes and customs cost from your country to us), and when we receive the return items we will refund the money.
We are not recommending the return policy, because that cause high cost for both of us.
Contact Us:Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
1. Before place order, firstly please take a moment to read all the information provided here where your most questions' answers are.
2. You can contact with us by trade manager or by email, we track the message everyday.
Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
1. Are you battery charger Manufacturer?
Yes, we are a professional lifepo4 battery charger manufacture over 18 year's experience.
2. Are you specialized in battery charger products?
Yes, we specialize in Lithium battery charger, Lead acid battery charger, LifePO4 battery charger, Smart battery charger.
3. How do you guarantee the quality of your battery charger products?
The battery charger workshop is strict implementation in accordance with the ISO9001 system. Our quality control department made strict quality inspection and 100% aging before packing.
4. Do you have any certification of your battery charger products?
Yes, we have CE, Rohs and FCC certification for most of our battery charger. Some chargers we have UL certification, but the price will be a little higher.
5. How to transport the 48V battery charger?
We have 18 year's experience in their long-term cooperation partners. We can arrange the port and transit country as your demands.
6. Does the 48V battery charger have the minimum order requirements?
No, we have not minimum order requirements for chargers for the normal items.
7. What is the 48V battery charger lead time?
Depend on the quantity of your order. Usually the normal 48V battery charger needs 1-3 days, and OEM order requires 8-12 days.
8. Can you arrange to ship my other supplier's product together?
Yes, we can help to collect and ship your supplier's product, and even help to source any products from China you specified in addition to the 48V battery charger products
9. Can I visit your factory?Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger
Sure, welcome to our factory. In addition, we provide free help to large customers to verify the quality of your other supplier service. We can help you to your other Chinese suppliers for verification, and to provide on-site photos, certificates and other documents.
10. Do you offer other service?
Yes, if you need our help on purchasing any goods, just send us your demand details. We will do our utmost to help you, and to provide you with convenient China management.
Best seller will provide you with professional service. Leave message to get a best price of “Latest touch screen Automatic battery charger 24V 100A 36V 48V 50A 60V 72V 84V 30A 96V 20A batteries charger with PFC CAN BUS"
