SPECIFICATIONS

Brand Name: PowMr

Feature 1: Battery Protection

Feature 2: Battery Protection

Feature 3: Li-ion Lead Acid Battery Protection

Hign-concerned Chemical: None

Maximum Current: 0~5A/0~10A

Model Number: Battery Equalizer

Origin: Mainland China

Protection: Reverse Polarity Protection

is_customized: Yes

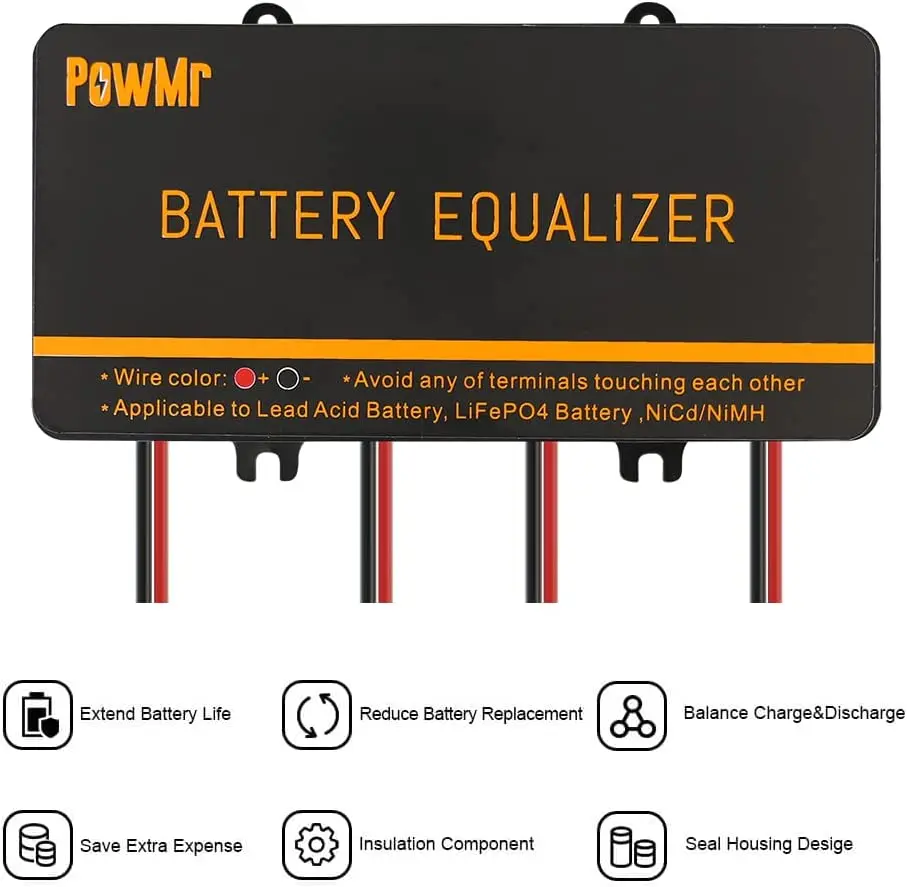

Battery Equalizer 24V 48V Batteries Voltage Balance Li-ion Lead Acid Battery Connected in Parallel for Solar Controller Inveters

What is Battery Equalizer?

Specialized for keep up the voltage balance of batteries connected in series during the Charging and Discharging process, due to differences in the chemical composition and temperature of the battery cell that connected in series,It causes two battery charge and discharge differences even the battery is idle, also due to the different levels of self-discharge could lead to an imbalance between serially connected battery at charging process, because there are differences, it could make a battery excessive charge or discharge,and the other one insufficient charging or discharging.

How do Battery equalizer Work?

This battery equalizer can compensate both parties when the battery are connected in series as voltage difference exceeds 10 mV, then the battery equalization starts to work, Final achieved balance of the batteries set. It can be connected for long periods for automatically battery state of equilibrium.

This BE24 Battery Equalizer Extend Battery Life + 1 Year or More

BE24 Battery Equalizer can be used for the 24V 36V 48V and other N*12V lead-Acid batteries (VRLA)(Sealed=AGM,Flooded,Gel,Calcium).

1. 24V battery system : 1 pcs

2. 36V battery system : 2 pcs

3. 48V battery system : 3 pcs

4. N*12V battery system : N-1 pcs

Specificattion

1. Battery nominal voltage / 2×12V

2. Optimizing current / 0-5A

3. Quiescent current <3mA

4. Size 70×70×27 mm 0.25kgs

5. Low voltage disconnect 10V

Warm tips

1. Since each battery has a different internal resistance, charging and discharging will cause the battery to be unbalanced.

2. It is not that the battery voltage can be balanced as soon as the equalizer is connected, but it takes a period of time to balance the unbalanced battery voltage after it is connected.

This 48V Battery Equalizer Extend Battery Life + 1 Year or More

This equalizing battery charger is suitable for Lead-acid Batteries(VRLA)(Sealed=AGM,Flooded,Gel,Calcium), Lithium Iron Phosphate Batteries(LFP), Nickel Cadmium Secondary Batteries(Ni/CD), and Nickelmetal Hydride Secondary Batteries(Ni/MH).

Specificattion

1. Battery nominal voltage:4×(2.4V/3.6V/6V/9V/12V)

2. Optimizing current : 0-10A

3. Quiescent current:5mA(12V)1.2mA(2.4V)

4. Dimensions : 62×124×27mm 0.5kg

5. Protection: Reverse polarity protection

6. Under voltage lock out:1.8V

Warm tips

Since each battery has a different internal resistance, charging and discharging will cause the battery to be unbalanced.

It is not that the battery voltage can be balanced as soon as the equalizer is connected, but it takes a period of time to balance the unbalanced battery voltage after it is connected.
